JBL VRX 900 Line Array System

VRX932LA-1 12" Two-Way Line Array Speaker VRX932LA-1 12" Two-Way Line Array Speaker
Manufacturer's Description for JBL
VRX932LA-1 12" Two-Way Line Array Speaker  and SPEAKERS SUB VRX918SP

The VRX932LA-1 is a light-weight (46 lb / 21 kg) compact 12" two-way line array speaker system designed for use in arrays of up to six units. VRX932LA-1 is the ideal choice when line array performance is needed but the venue size doesn’t call for the very long-throw characteristics of larger line arrays such as JBL’s VERTEC.

The Constant Curvature waveguide mounts three compression drivers on a continuous arc. When additional VRX932LA-1 speakers are added to the array the uninterrupted arc continues. In effect, all the drivers work together as if they were a single driver on a very long waveguide. Since there are three drivers in each VRX932LA-1, the combined power handling and acoustic output of the system is far greater than a single driver could achieve.

VRX932LA-1 uses “amplitude shading” to shape the coverage of the array. Switches on the input plate allow, for example, the upper box in an array to reach a distant balcony while the lower HF section is shaded back to reduce excessive level at the front of the listening area.

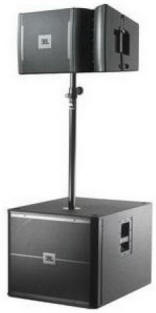

One or two VRX932LA-1’s may also be used on a tripod or over subwoofers. The integral rigging hardware is used to securely lock the array together while the dual-angle pole socket provides aiming flexibility.

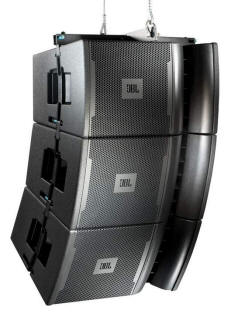

As many as six VRX932LA-1 speaker systems may be suspended in a single array for a nominal vertical coverage of up to 90°. Suspended applications require the JBL VRX-AF array frame (available separately). For applications in which the array must be aimed sharply down, a second array frame may be installed to the bottom of the array serving as a pull-back.

VRX918S subwoofers are the ideal choice for a ground-stacked or flown VRX932LA-1 system. The SRX718S subwoofer is also compatible when suspension is not required.


The VRX-AF is an array frame kit designed to be used for suspension of the VRX932LA-1 line array loudspeaker and the VRX918S. The optional array frame kit includes an array frame, four quick release pins, a pair of forged 3/8" shackles, and a pair of drop levers.

For some applications, it may be necessary to pull back the array from the bottom in order to achieve the desired coverage. Every VRX-AF is supplied with a spare set of quick release pins and a pair of spare drop levers that are used to adapt a second array frame to the bottom of a VRX932LA-1 array. Once these are installed on the bottom enclosure, the array frame may be attached as previously described.

Ground-stacked, upward aimed array: Applications such as covering stadium bleachers from the playing field may be addressed by installing the VRX-AF array frame to the bottom of the array as described above. Up to four VRX932LA-1 loudspeakers may be locked together and ground stacked using the VRX-AF array frame kit, as shown.

•1 x center frame
•2 x side arms
•4 x quick release pins
•2 x drop levers
•2 x 3/8? shackles

It's able to support a working load limit of 520 pounds at a 10:1 Design Factor.

 JBL’s VERTEC® SERIES Line Arrays lead the industry in large venue sound reinforcement. While intended for smaller venues than VerTec, the VRX900 Series Constant Curvature Line Arrays are designed and built to the same high standards and uses the same advanced, concert-proven drivers. JBL’s VRX900 SERIES speakers deliver extraordinary power handling, clarity, flexibility and, of course, stunning JBL sound in an attractive, easy to handle and affordable package.
VRX918SP 18 in. High Power Powered Flying Subwoofer
Power Rating 1500 Watts Peak
Features :

The VRX918SP is a powered, suspendable subwoofer system containing a 2268FF neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure.
Features :
Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1500 Watts of peak Power. DSP based resident input module provides system optimization, EQ and crossover functionality.
18 inch, 2268FF dual voice coil, neodymium magnet Differential Drive® woofer for high-power capacity and light weight.
Integral rigging hardware for simple connection of enclosures and optional array frame.
20 mm threaded pole socket for solid, secure satellite speaker mounting.
SS4-BK adjustable satellite speaker pole WK-4S Caster kit


VRX932LAP LINE ARRAY
Power Rating 1500 Watts Peak
Features :

Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power.
DSP based resident input module provides system optimization and EQ functionality.
JBL’s exclusive neodymium magned Differential Drive® woofer for high-power capacity and light-weight.
VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
Constant Curvature waveguide for unprecedented array coherence.
Integral rigging hardware for simple connection of enclosures and optional array frame.
Dual angle pole socket for aiming flexibility.
Array Configuration Selector permits “array shading”.
