Key Features



Balanced XLR Auxiliary Inputs

In addition to the DN-A7100’s 8 balanced line outputs, it’s thoughtfully equipped with a pair of stereo XLR inputs. Switchable between +4dB and -10dB input levels, these inputs are ideal for any source such as a professional CD player in a boardroom or an outboard microphone mixer in a conference hall.

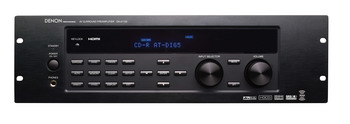

Full-featured AV Source Switching

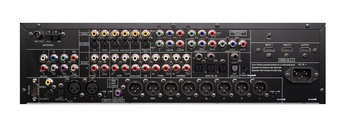

The DN-A7100 is not just a surround sound decoding preamp. It is a full-featured AV source switcher. All audio and video sources in an installation are easily hooked up to the rear of the unit and from the front panel, the included IR controller, or by RS-232, the end-user may easily select whichever source they wish to enjoy.

Source Video Switching with Convert to Component

Let’s face it. Even in today’s technically advanced systems, not all video components have high definition outputs. Many boardrooms still rely on source products like VCR’s and analog TV tuners.

There is nothing worse than having to run multiple video cables to a display. Well, that’s OK. With the DN-A7100’s convert to component feature, it does not matter which input your device hooks up to. Simply plug your TV tuner into the composite TV input and your S-VHS into the VCR S-video input, the DN-A7100 converts the signals to the component outputs, allowing you to only run one set of cables to the display.

7.1 direct audio inputs

Ensuring compatibility with any future component, audio format, or external equipment with decoded outputs (i.e. SACD, Blu-ray player, HD-DVD player) is not a problem with the inclusion of the 7.1 direct audio inputs.



Controllability

The DN-A7100 is controllable via it’s included Infrared remote controller or by RS-232c serial control. A 9-pin D-Sub connector allows for integration into any installation with a Crestron® or AMX® control system.



AM/FM Tuner with XM Compatibility





---









Specifications
FM Tuner Section
Frequency Range	87.5 – 108.0 MHz
Usable Sensitivity	IHF 1.8 µV/16.4 dBf
Signal to Noise Ratio	Mono/Stereo 75/70 dB
Distortion	Mono/Stereo 0.2/0.3 %
Stereo Separation	1 kHz 45 dB
Alternate Channel Selectivity	± 300 kHz 60 dB
Image Rejection	98 MHz 70 dB
Tuner Output Level	1 kHz, ± 75 kHz Dev 800 mV
AM Tuner Section
Frequency Range	520 – 1710 kHz
Signal to Noise Ratio	50 dB
Usable Sensitivity	Loop 400mV/m
Distortion	400Hz, 30 % Mod. 0.5 %
Selectivity	± 20 kHz 70 dB
Audio Section
Input Sensitivity/Impedance (volume at 0dB)
(RCA connectors)	220 mV/ 20 kohms
(XLR connectors)
(+4dBu)	440 mV/ 20 kohms
(–10dBV)	110 mV/ 20 kohms
Output Level (volume at 0dB)
(+4dBu)	300 mVrms typ.
(–10dBV)	75 mVrms typ.
Signal to Noise Ratio
(Analog Input / Pure Direct)	98 dB
Frequency Response
(Analog Input / Pure Direct)	10 Hz – 90 kHz (± 3 dB)
THD	0.03 %
Cross Talk	80 dB (at 1 kHz)
Audio Inputs
8 Sets Analog Inputs	TV, DVD, VCR, DSS/VCR2, CD, TAPE, CDR/MD, Aux 2 (part of 7.1 dir. in)
1 Set Analog Balanced Input	Aux 1 (XLR L/R - switchable +4dB/-10dB)
1 Set Discrete Analog Input	Aux 2 (7.1 direct in) L/R (st.), SL, SR, C, SBL, SBR, SW
3 Digital Inputs	Optical x 3 (assignable) Coaxial x 2 (assignable)
Audio Outputs
8 Balanced Analog Outputs	L, R, C, SL, SR, SBL, SBR, SW (XLR, switchable +4dB/-10dB)
1 Unbalanced Audio Output	SW
3 Sets Analog REC Output	VCR, TAPE, CDR/MD
2 Digital Outputs	Optical x 1 Coaxial x 1
1 Headphone Output	1 - 1/4” HP Out (front panel mounted)
Video
Television Format	NTSC
Input Level/Impedance	1 Vp-p/75 ohms
Output Level/Impedance	1 Vp-p/75 ohms
Video Frequency Response	5 Hz to 8 MHz (– 1 dB)
Video Frequency (Component)	5 Hz to 80 MHz (– 1 dB)
S/N	60 dB
Video Inputs
2 Sets HDMI (v1.1) Input	Input-1, Input-2 (assignable)
3 Sets Component Video Input	Input-1, Input-2, Input-3 (assignable)
5 Sets S-Video Input	TV, DVD, VCR, VCR2, AUX1
5 Sets Composite Input	TV, DVD, VCR, VCR2, AUX1
Video Outputs
1 Set HDMI (v1.1) Output	Output
2 Sets Component Video Output	Monitor Out-1, Monitor Out-2
2 Sets S-Video Output	VCR, Monitor (will convert to Component)
2 Sets Composite Output	VCR, Monitor (will convert to Component)
Control
RS-232	1 - DB9 Bi-Directional connector
Infrared	1 - IR receiver (front panel mounted)
Other Connectors
FM Antenna In	Coax (75 ohm)
AM Antenna In	Available
XM	Available
DC Trigger	1/8”
AC Inlet	IEC Weighted Grounded with Detachable Cord
General
Power Requirement	AC 120 V 60Hz
Power Consumption	34 W
Dimensions	19 in. (482.6mm) Width 13 7/8 in. (353.85mm) Depth 5 1/4 in. (132.6mm) 3U Height
Weight	16.85 lbs (7.66 Kg
