HD Format 1080p
Movie Screening Package
Christie DHD
8000 Lumens 1080p HD DLP Projector,
Wide Format Fastfold Screens
with
7.1 Surround
Speaker System
Los
Angeles Area, San Francisco Area, San Diego Area, Dallas,
Las Vegas, Salt Lake City
Call
503-477-8972
email
for price quote |

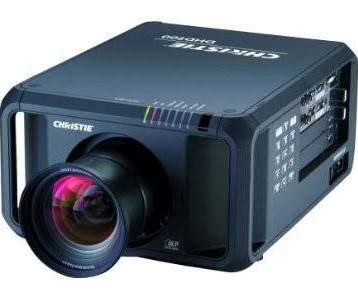

Christie DHD800
Projectors
8000 ANSI Lumens 1080p HD Large Venue DLP Projector
 |
|
New on our shelves are our Christie 8k
HD projectors. They are high definition projectors engineered to
produce bright images with superior color correction. They have
HDMI , VGA, DVI and Component/RGB inputs and are native 1080
resolution.
We also have new lenses for these projectors, short
throw 1.2-1.8.
The Christie DHD800 1-chip DLP
digital projector is Full HD with high brightness. It is ideally
suited for a variety of applications including fixed installs and
live events. With its HD (1920 x 1080) resolution, this projector
is compatible with computers and video sources. A unique,
user-changeable, twin-color wheel system gives you the flexibility
to tailor your presentations to maximize brightness of images and
achieve superior color reproduction. The Christie DHD800 also
includes a lamp interval feature which you to select the interval
times for balanced lamp usage.
available to rent for
your next event.
Specification Sheet
| General |
| Device Type |
DLP projector - High
Definition 1080p |
| Width |
15.7 in |
| Depth |
20.6 in |
| Height |
9.6 in |
| Weight |
43.4 lbs |
| Projector / Panel |
| Image Brightness |
8000 ANSI lumens |
| Image Contrast Ratio |
7500:1 |
| Resolution |
Full HD - 1920 x 1080 |
| Native Aspect Ratio |
Widescreen |
| Video Bandwidth |
160 MHz |
| Max Sync Rate (V x H) |
100 kHz |
| Lamp Type |
2 x UHP 330 Watt |
| Lamp Life Cycle |
2000 hour(s) / 3000 ns
(economic mode) |
| Features |
Edge blending, High-bandwidth
Digital Content Protection System (HDCP),
BrilliantColor, VIDI Lighting Technology |
| Projector Lens
System |
| Lens |
No lens |
| Keystone Correction Type |
Digital |
| Vertical Keystone Correction |
-30 / +30 |
| Horizontal Keystone
Correction |
-30 / +30 |
| Video Input |
| Analog Video Signal |
RGB, S-Video, composite
video, component video |
| Digital Video Standard |
Digital Visual Interface
(DVI), High-Definition Multimedia Interface (HDMI) |
| Video Modes |
480p, 720p, 1080i, 1080p,
480i, 575i, 575p |
| Video Output |
| Analog Video Signal |
RGB |
| Input Device |
| Type |
Remote control |
| Expansion /
Connectivity |
| Interfaces |
1 x DVI-D input - 24 pin
digital DVI 1 x HDMI input - 19 pin HDMI Type A 1 x
VGA input - 15 pin HD D-Sub (HD-15) 1 x composite /
component video / RGB input - BNC x 5 1 x S-video
input - 4 pin mini-DIN 1 x composite/component video
input - RCA x 3 2 x audio line-in - mini-phone stereo
3.5 mm 1 x audio line-in - RCA x 2 1 x management - 9
pin D-Sub (DB-9) 1 x remote control - mini-phone 3.5
mm 1 x network - RJ-45 1 x VGA output - 15 pin HD
D-Sub (HD-15) 1 x serial RS-232C input - 9 pin D-Sub
(DB-9) 1 x serial RS-232C output - 9 pin D-Sub (DB-9)
1 x USB ( management ) |
| Miscellaneous |
| Compliant Standards |
CISPR 22 Class A, CISPR 24,
EN55022, EN55024, RoHS, UL 60950-1, IEC 60950-1, CSA
C22.2 No. 60950-1, FCC Part 15 B Class A |
| Power |
| Power Device |
Power supply - internal |
| Voltage Required |
AC 120/230 V ( 50/60 Hz ) |
| Power Consumption Operational |
963 Watt |
| Power Consumption Operational
( Standby ) |
23 Watt |
| Software / System
Requirements |
| Software Included |
Real Color Manager Pro |
| Manufacturer
Warranty |
| Service & Support |
3 years warranty |
| Service & Support Details |
Limited warranty - parts and
labor - 3 years Limited warranty - lamp - 120 days /
500 hours |
| Environmental
Parameters |
| Min Operating Temperature |
41 °F |
| Max Operating Temperature |
104 °F |
| Humidity Range Operating |
20 - 80% |
| Sound Emission |
38 dB |
| Sound Emission (Economic
Mode) |
35 dB |
| Universal Product
Identifiers |
| Brand |
Christie Digital Systems |
| Part Number |
103-029102-01 |
|
|
|
|
|
7.1 Surround Sound System
 |
|
At the top of the DN-A7100 feature
list is its 8 true balanced line-level outputs. In
many professional applications, the main feature
utilized in any AV switching product is its ability to
decode digital surround sound signals and output them
to their specific speaker output.
The DN-A7100 is no exception. It is compatible the
with most advanced surround sound formats and because
of its unique design, the DN-A7100 is ideal for any
installation that requires high-quality, channel
separated audio outputs — especially those
installations where adapting unbalanced RCA preamp
outputs is completely unacceptable (and it always is!)
or the extra weight of ill-purposed, unused consumer
power amps is not needed. Many installations now
require surround sound decoding. From big deployments
with many power amps driving line array speaker
systems to small boardrooms and home theaters with
active monitor systems, the Denon DN-A7100
is the
affordable, professional choice. |
|
|
|
PRX612M
1000 Watt Speakers |
|
Features
speaker systems.
- 1000 Watt Class-D, Crown amplifier with 134db peak SPL
- Dual purpose enclosure for both front-of house and floor
monitor applications
- Optimized EQ for monitor for front-of-house applications
- 12 inch Differential Drive dual voice-coil and magnetic
gap, neodymium woofer
- 1.5 inch annular polymer diaphragm, neodymium, compression
driver
- DSP input section, crossover and dynamic limiting
- Component optimization and selectable system EQ
- Professional XLR line and 1/4 inch Mic/Instrument inputs,
with loop through
- Eight M10 fly points for horizontal or vertical suspension
- One M10 pull-back point
- Dual-angle pole mount socket
Applications
The PRX612M is comprised of a 305 mm (12 inch) 265F
Differential Drive woofer, a 2408H-1, 37.5 mm (1.5 inch)
annular polymer diaphragm, neodymium compression driver
mounted to a 90 by 50 degree horn, all driven by 1000 watt
(dual 500 watt) Crown Class-D digital power amplifier. A
propriety DSP chip is at the core of a fully featured input
section, providing user selectable system EQ, protection,
input sensitivity selection, cross-over functionality,
dynamic limiting and discrete component optimization.
All PRX600 cabinets are built from a combination of 25mm (on
the top and bottom for added rigidity) and 18mm, strong,
light-weight poplar plywood made structurally sound with
tongue and groove joints. All PRX600 Series cabinets are
protected by JBL's tour proven DuraFlex finish. Grilles are
made from dent-resistant 16 gauge steel and handles are made
from light-weight glass-filled nylon for added strength and
durability. All M10 suspension points are constructed from
14 gauge steel and have been tested with a yield-strength of
1000 lbs. each.
The amplifier input panel offers XLR or 1/4 inch jack
compatibility and a sensitivity switch provides extra
flexibility, making it possible to connect literally any
sound source without using a mixer. Signal present and
limiter lights indicate the system status and assist in
setting the optimum level, via the level control knob |
Rent for
Live Events, Media Environments, Stage Sets, Exhibits or
Themed Environments, Meetings, Corporate Theater,
Promotions, Parties, Awards & Entertainment Events, Public
Relations & Industry Press Events, Road Shows, Traveling or
Permanent Shows, Museums, Film & Television, Sponsorship
Presentation, Special Environments for all occasions.
We are a full service audio, visual, video, lighting,
staging, and computer rental company. Serving clients
nationally, we offer one of the most comprehensive
inventories in the industry for small businesses events,
conventions, tradeshows, expositions, event planners,
training seminars, and live entertainment shows. With the
latest in technology from leading manufacturers, we ensure
your event will be a total success.
