NEC Plasma TV Specifications

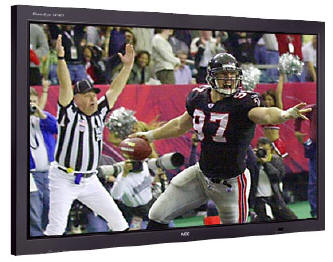

NEC 50XM3 Plasma TV Display

The PlasmaSync™ 50XM3 is designed for flexibility and ease of use. This new stunning true XGA monitor offers full compatibility with a wide range of video signals (PAL, SECAM and NTSC), PC signals and HDTV formats (480p, 480i, 720p and 1080i), the 50XM3 ensures that images are optimally displayed. The PlasmaSync 50XM3 scan converter automatically converts full XGA and UXGA signals. PowerPoint presentations to DVD movies, all the possibilities are just a quick connection away.

Key Features of the NEC 50XM3 50" Plasma Monitor

• 50" HDTV-capable Plasma Display Panel, 1366 x 768 XGA Resolution
• 18-Watt Stereo Audio Amplifier (speakers optional)
• Improved Scan Converter and Mass Area Sampling circuitry deliver precise sharpness and accurate color reproduction from data and video signals
• Gamma 12 technology and Color Controls allow fine-tuned color settings with 4,000 shades of gray
• Input Flexibility from video to HD to RGB signals. Signal loop-out capability allows matrix displays spanning 4 plasma monitors
• AccuShield Screen Protection prevents image retention
• Advanced Operation System including Advanced Timer allows the monitor to virtually operate itself

NEC 50XM3 Plasma TV

The NEC PlasmaSync XGA models deliver superb image quality from any source. NEC’s Advanced AccuBlend scan conversion provides precise interpolation of computer-based information from VGA to UXGA in both 16:9 and 4:3 aspect ratios. This enables the monitor to display clear, readable images even in non-native resolutions. In addition, motion-compensated 3D scan conversion provides smooth, lifelike display of video sources and a 3-2 pull down converter enhances the appearance of content originally produced in 24 frame/second film.

Color Tune Technology takes colour accuracy even further, allowing you to adjust individual colors without affecting the white balance. Fine tune the blues in skies or the greens in the trees and keep the same brilliant contrast. The unique Plasma Display Cell Structure deep within the PlasmaSync 50XM3 creates color by applying voltage to electrodes above and below the cells which are coated in red, green or blue phosphors. The emission of light that is discharged from these cells increases the luminance but decreases the power consumption. The results are vivid colors and unimaginable clarity.

NEC Plasma Technology

Mass Area Sampling (MASS) delivers high quality images and allows smooth reproduction for clear, precise color. MASS also eliminates jagged lines and corrects color bleeds to create clear and defined images. Finally, proper scaling is selected for the input signal resolution resulting in the most accurate image reproduction possible.

Gamma 12 affords control even the darkest of images. With over 4,000 shades of gray you can manage the picture’s brightness and enhance the image’s overall quality.

Color Temperature controls the tone of the whites in the image. Four preset modes are available which select a specific color temperature. If finer adjustments are needed simply switch into the professional mode for more advanced tuning.

Improved Scan Converter changes input signals in accordance with the resolution of the display. This makes a dramatic difference resulting in even the smallest of characters being perfectly legible.

Convenience Features

AccuShield Screen Protection protects the plasma display screen from image retention with the most comprehensive set of built-in modes including programmable Orbiter, Inverse RGB, All-White, Pixel Refresh, Brightness Limiter and Soft Focus.

Advanced Operation System includes many professional grade functions such as the Advanced Timer that can carry out various operations at designated times. Operations include powering on/off, input selection and activating long life modes. These features enable the monitor to virtually operate itself.

Image Matrixing is possible in two configurations resulting in a 2x2 or 3x3 video wall. Internal processing allows the video to be split into quadrants eliminating the need for external matrix equipment.

Digital Zoom allows you to select any portion of the screen and magnify it to emphasize a point or highlight information. Zoom in up to 300% with push button ease from the remote control to make your point!

Sleek Design With a new cabinet design we have minimized the bezel size to make sure that the focus is on the image and not the frame around the image. The new cabinet design also allows for a small form PC to be attached solving the problem of source equipment location.

Quiet Operations Engineered with silence as a priority, these units produce a noise level of only 22dB, these XGA models perform quietly in any environment.

External Control and Diagnostics A complete set of RS232 commands allow monitor functions to be operated remotely via serial communications. In addition, operating problems can be identified and communicated via RS232 or front bezel LED lights through its self diagnostics system.

Display Flexibility Depending on your needs, you can display in either portrait or landscape orientation.

Terminals and Connections

Input Flexibility allows connexions to multiple sources from video to HD to RGB. Signal loop-out capability allows a source to easily be looped from one monitor to the next allowing you to connect 4 displays without requiring additional equipment
