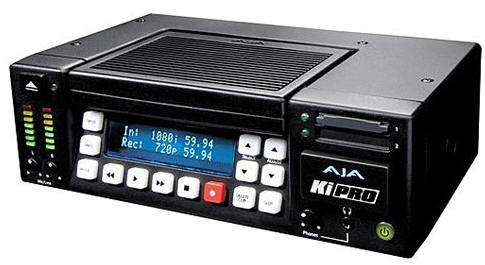

The AJA Ki-PRO is a recording device designed to streamline post production workflow by simplifying video acquisition. The unit features both SDI and HDMI inputs, making it compatible with most pro consumer and professional cameras. The KiPRO takes advantage of Apple's ProRes technology for a seamless transition from "lens to post". The device records to high-capacity drives from a wide variety of cameras and will accept either the 500gb or 250gb drive for large or larger recording capacity and flexibility.

Ki-PRO is portable and rugged; designed for real production environments. With the optional exo-skeleton it can sit below your camera-out of the way of your battery adapters, wireless mics and other accessories. Integration with your other production gear is seamless.

Ki-PRO is intuitive to operate. Alongside the camera, the familiar VTR-like buttons provide immediate controls for basic operation. From a distance, use a web browser via ethernet or WiFi to control operations from a laptop or iPhone.

250GB and 500GB hard drive rented separately


AJA Video is a leading manufacturer of high-quality and cost-effective digital video interface, conversion and Desktop solutions supporting the professional broadcast and post-production markets.

AJA Video products have long had a reputation for robust performance, reliability and delivering a lot of power for a low price point for increased broadcast and post-production workflow environments. AJA's format converters are available in both HD and SDI product lines, with a full range of conversion and other capabilities. AJA's IOHD is the latest in the award-winning IO family of products an effortless, transportable plug-in solution to working with HD and SD in Final Cut Pro on a MacBook Pro or Mac Pro computer. The KONA family is AJA's line of 10-bit uncompressed QuickTime cards for Video and Audio I/O on a Mac.

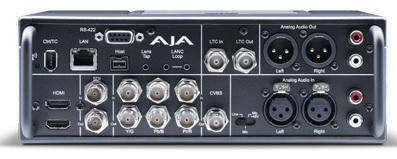

Video Formats 525i 29.97 625i 25 720P 23.98, 25, 29.97, 50, 59.94, 60 (Note: 720p 23.98 (24), 720p 25 and 720p 29.97 require a valid camera source and the use of the Record Type>VFR selection) 1080i 25, 29.97, 30 1080PsF 23.98, 24, 25, 29.97, 30 1080PsF 23.98, 24, 25*, 29.97* (Note: 25 and 29.97 require a valid camera source and the use of the Record Type>PsF selection) 1080p 23.98, 24, 25, 29.97 Codec Support Apple ProRes 422 Apple ProRes 422 (HQ) Apple ProRes 422 (LT) Apple ProRes 422 (Proxy) Removable Storage AJA Ki Stor modules – 1 slot ExpressCard/34 – 2 slots (Only Slot 1 active, See www.aja.com for supported media) Video Input Digital SD/HD SDI, SMPTE-259/292/296, 10-bit Single Link 4:2:2 (1 x BNC) HDMI v1.1 Video Input Analog: SD/HD Component (3 x BNC) SMPTE/EBU N10, Betacam 525 line, Betacam 525J 12-bit A/D, 2x oversampling +/- .25 dB to 5.5 MHz Y Frequency Response +/- .25 dB to 2.5 MHz C Frequency Response .5% 2T pulse response <2 ns Y/C delay inequity Video Output Digital (all simultaneously active)* SD/HD SDI, SMPTE-259/292/296, 10-bit Single Link 4:2:2 (1 x BNC) HDMI v1.1 (Note: HDMI requires 1080i, 720p or 1080p to be active; HDMI does not provide support for PsF) Video Output Analog (all simultaneously active) Composite (1 x BNC) NTSC, NTSCJ, PAL 12-bit D/A, 8x oversampling +/- .2 dB to 5.0 MHz Y Frequency Response +/- .2 dB to 1 MHz C Frequency Response .5% 2T pulse response <1% Diff Phase <1% Diff Gain (Note: Composite output requires that the Component Analog output be set to SD; composite output does not support HD) Video Output Analog (all simultaneously active) Composite (1 x BNC) NTSC, NTSCJ, PAL 12-bit D/A, 8x oversampling +/- .2 dB to 5.0 MHz Y Frequency Response +/- .2 dB to 1 MHz C Frequency Response .5% 2T pulse response <1% Diff Phase <1% Diff Gain (Note: Composite output requires that the Component Analog output be set to SD; composite output does not support HD) Component (3 x BNC) HD: YPbPr, RGB SD: YPbPr, RGB (component mode) SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB 12-bit D/A, 8x oversampling +/- .2 dB to 5.5 MHz Y Frequency Response +/- .2 dB to 2.5 MHz C Frequency Response .5% 2T pulse response <1 ns Y/C delay inequity Audio Input Digital 8-channel, 24-bit SMPTE-259 SDI embedded audio, 48kHz sample rate, Synchronous 2-channel, 24-bit HDMI embedded audio, 48kHz sample rate, Synchronous Audio Input Analog 2-channel, 24-bit A/D analog audio, 48kHz sample rate, balanced (2 x XLR) Input level: Line, Mic, Mic+phantom 48Vdc +24dbu Full Scale Digital +/- 0.2db 20 to 20kHz Frequency Response 2-channel unbalanced (2 x RCA) Audio Output Digital 8-channel, 24-bit SMPTE-259 SDI embedded audio, 48kHz sample rate, Synchronous 8-channel, 24-bit HDMI embedded audio, 48kHz sample rate, Synchronous Audio Output Analog 2-channel, 24-bit D/A analog audio, 48kHz sample rate, balanced (2 x XLR) +24dbu Full Scale Digital (0dbFS) +/- 0.2db 20 to 20kHz Frequency Response 2-channel unbalanced (2 x RCA) Stereo unbalanced headphone (1 x ¼” mini jack) Up-Conversion Hardware 10-bit Anamorphic: full-screen Pillar box 4:3: results in a 4:3 image in center of screen with black sidebars Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars Zoom Letterbox: results in image zoomed to fill full screen Zoom Wide: results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting can introduce a small aspect ratio change Down-Conversion Hardware 10-bit Anamorphic: full-screen Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved Crop: image is cropped to fit new screen size Cross-Conversion Hardware 10-bit 1080i to 720P 720P to 1080i Timecode SDI RP188 via SDI BNC LTC input (1 x BNC) LTC output (1x BNC) (Note: active during playback not during record or EE) Network Interface 10/100/1000 Ethernet (RJ-45) 802.11g Wireless Embedded web server for remote control Computer Interface IEEE1394b/FireWire800 User Interface 2 x 20 character display, with dedicated buttons Control LANC Loop (2 LANC Connectors) (Note: requires a LANC enabled camera) Lens Tap (Note: Not activated) IEEE-1394a/FireWire400 for control and timecode data Machine Control RS-422, Sony 9-pin protocol. 9-pin D-connector pinout is as follows: 1 GND 2 RX- 3 TX+ 4 GND 5 No Connection 6 GND 7 RX+ 8 TX- 9 GND Shell GND Physical Width: 9.00” (22.86cm) Depth: 6.12” (15.56cm) from front antenna cover to back of handles Height: 3.25” (8.25cm) Power: 100-240 VAC 50/60Hz (adapter), 12-18Vdc 4-pin XLR (chassis), 3.3A max, 30W typical Weight: 3.7 lb. (1.67kg)
