System Description

Incorporating Folsom's Athena proprietary high performance image processing technology, New video scaler. This unit features SDI, DVI, Composite and RGBHV inputs and is capable of handling both standard and high definition formats. Also accommodates 4x3 format as well as 16x9. This unit is used to change/scale one video resolution to another video resolution. While this unit can be used to switch between inputs it is not ideal for video. The purpose of this unit is to scale a video to appropriate resolution so that it can be sent to a true switcher. (Think of it as a DI box for video. It changes to signal to a format which the ‘audio board’, in this case the video switcher, can accommodate.)

Features

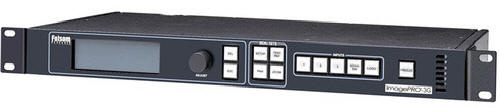

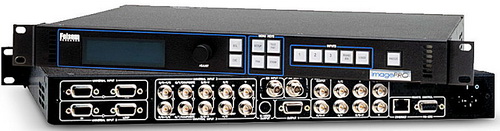

Thanks to Barco's high performance image processing technology, the ImagePRO-3G is a high-performance video scaler, scan converter, switcher and transcoder all rolled into one. ImagePRO is the ideal solution for converting RGB, HDTV, component, s-video, composite (NTSC, PAL and SECAM) and HD/SDI video into a user-selectable video format. The ImagePRO includes four video outputs and three universal inputs, as well as a dedicated genlock BNC connector.

Utilizes the Athena™ high performance image processing technology
Three universal inputs accept RGBHV/RGBS/RGsB computer video, component video (SD or HDTV), s-video, or composite video with loop-through
Four video outputs; (2) RGB or component video, (1) composite video, and (1) s-video
User-defined aspect ratio conversion and adjustments
Pan and zoom
Freeze
10-bit processing
Motion adaptive and field to frame de-interlacing modes
3:2 pulldown detection for NTSC and 2:2 film detection for PAL video sources
Decodes NTSC, PAL, and SECAM
Ethernet for real-time control
Encodes NTSC and PAL
Genlock, H/V lock and Vlock
Executive mode: protects system configuration settings during use
64 independent memory presets

Specs

V

Number of inputs	4
Universal inputs	(3) high bandwidth video channels support RGBHV/RGBS/RGsB computer video, component video (SD or HDTV), S-video, or Composite video Connectors: Input 2 on 15-pin HD connectors with buffered loop-through. Input 3 on five BNC connectors with buffered loopthrough Input 1 on DVI-I connector supports both universal analog and DVI input with loop-through (1) 3G/HD/SD SDI on a BNC connector.
Input resolution range	VGA (640x480), SVGA(800x600), XGA(1024x768), SXGA(1280x1204), UXGA(1600x1200), WUXGA (1920x1200), HDTV 480p, 720p, 1080p, 1080i, 875 RS-343, 525 RS-170
Standard resolution video input	NTSC, PAL or SECAM
Horizontal frequency	15 kHz to 120 kHz
Vertical frequency	25 Hz to 120 Hz
Input termination	75 Ohm
Input sync	Sync-on-Video, Separate C or H/V
External sync	(Genlock) Input: Blackburst, Computer H/V Sync or C-sync.
Connectors	BNC
Video outputs
Number of outputs	6
Connectors	RGB or component video (SD or HDTV) on HD-15 RGB or component video (SD or HDTV) or composite video on five BNC Composite video on BNC S-video on 4-pin mini-DIN connector 3G/HD/SD SDI on a BNC connector DVI output on DVI-D connector
Standard resolution video output	NTSC, PAL
High resolution output supported	VGA (640x480), SVGA(800x600), XGA(1024x768), SXGA(1280x1204), UXGA(1600x1200), WUXGA (1920x1200). For Plasma Displays 1280x768, 1365x768, 1365x1024. HDTV 480p, 720p, 1080p, 1080i. 875 RS-343, 525 RS-170. User definable video output formats supported.
Sync	RGBHV, RGBS, RGsB, TTL level, Polarity selectable, HDTV. Tri-level Sync supported. 75 ohm Output Impedance.
Other
Remote Control	Ethernet connection (with TCP/IP) or RS-232 serial port for real-time control.
Physical	Height: 1.5" Width: 17" (43.2 cm) or 19" (48.3 cm) with rackmount option Depth: 14" Weight: 9lbs. Shipping Weight: 13 lbs.

Input Power 100-240 VAC, 47-63 Hz
