Panasonic PT-DW740UK
7000
Lumens XGA DLP Projector
720P or 1080i
PT-DW640UK DLP DLP WXGA 6000
1080 P 10K
&
8K 1080p |
|
|
10000 Lumens 1080p HD Large Venue DLP Projector 16x9
Fastfold Screens
10,000
Lumen DLP Projector
Rentals
12,000 Lumen LCD Projector
Rentals |
|
LCD Projectors for Rent
Screens for Rent
New DLP
3000 lumen,
3500 lumen,
5000 lumen,
7700 lumen,
12,000 Lumen
10,000 lumen DLP, 15,000
lumen (2of the 7700 lumen projectors ) and 30,000 lumen
Throw Distance Calculator |
|
|
PT-DW740UK and PT-DW640UK DLP DLP
Wxga 6000 lumen

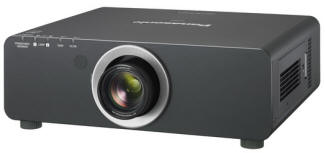

The Panasonic
PT-DW740UK boasts superior image quality, flexible installation, and
easy maintenance, making it an ideal choice for use in classrooms,
auditoriums, houses of worship, museums, and much more. If you are
looking for a compact but powerful projector, check out the
Panasonic PT-DW740UK that produces 7,000 lumens of brightness. The
RGB Booster ensures vivid, colorful images, and the original Eco
Filter eliminates the need for filter replacement for up to 12,000
hours. Complete with a dual-lamp system, the PT-DW740UK gives you
high reliability and hassle-free maintenance. Vivid picture quality
is made possible via Detail Clarity Processor that brings depth and
clarity to details as well as the System Daylight View 2 for
enhanced color perception. The original, newly designed liquid
cooling system directly cools the DLP chip to improve performance
and enable operation up to 113°F. The Multi-Screen Support System
optimally adjusts multiple screens and includes edge blending, color
matching and multi-screen processing.
|
Specs
| Panel Size: |
0.65 inches diagonal (16:10 aspect ratio) |
| Display Method: |
DLP™ chip x 1, DLP™ system |
| Pixels: |
1,024,000 (1,280 × 800) pixels |
| Lamp: |
300 W (max. 310 W) UHM lamp × 2 |
| Brightness
1: |
7,000 lm (dual-lamp, lamp mode: high) |
| Contrast Ratio : |
2,500:1 |
| Resolution: |
1,280 × 800 pixels |
| Lens: |
Powered zoom (throw ratio 1.8-2.5:1), powered focus F
1.7-1.9, f 25.6-35.7 mm |
| Screen Size: |
50-600 inches (50-200 inches with the ET-DLE055),
16:10 aspect ratio |
| Optical Axis Shift: |
Vertical: +60% from center of screen (powered),
horizontal: ±10% from center of screen (powered) |
| Scanning Frequency - DVI-D:
|
fH: 15-91 kHz, fV: 50-85 Hz, dot clock: 162 MHz or
lower |
| Scanning frequency - RGB:
|
fH: 15-91 kHz, fV: 50-85 Hz, dot clock: 150 MHz or
lower |
| Scanning frequency - YPBPR (YCBCR):
|
480p (525p): fH: 31.50 kHz, fV: 60 Hz
576i (625i):
fH: 15.63 kHz, fV: 50 Hz
576p (625p): fH: 31.25 kHz, fV:
50 Hz
720 (750)/60p]: fH: 45.00 kHz, fV: 60 Hz
720
(750)/50p]: fH: 37.50 kHz, fV: 50 Hz
1035/60i: fH:
33.75 kHz, fV: 60 Hz
1080 (1125)/60i: fH: 33.75 kHz, fV:
60 Hz
1080 (1125)/50i: fH: 28.13 kHz, fV: 50 Hz
1080/25p: fH: 28.13 kHz, fV: 25 Hz
1080/24p: fH: 27.00
kHz, fV: 24 Hz
1080/24sF: fH: 27.00 kHz, fV: 48 Hz
1080/30p: fH: 33.75 kHz, fV: 30 Hz
1080/60p: fH: 67.50
kHz, fV: 60 Hz
1080/50p: fH: 56.25 kHz, fV: 50 Hz |
| S-Video/Video: |
fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60] |
| DVI-D in: |
DVI-D 24-pin x 1
(DVI 1.0 compliant, compatible
with HDCP, compatible with single link only)
480p,
576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p,
1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p,
VGA
(640 x 480)-WUXGA (1,920 x 1,200)*4,
Compatible with
non-interlaced signals only, dot clock: 25-162 MHz |
| RGB 1 IN: |
BNC x 5 |
| RGB 2 IN: |
D-Sub HD 15-pin (female) |
| VIDEO In: |
BNC x 1 (composite video) |
| S-VIDEO In: |
Mini DIN 4-pin x 1 (S-Video) |
| SERIAL IN: |
D-sub 9-pin (female) x 1 (for external control,
RS-232C compliant) |
| REMOTE 1 IN: |
M3 jack x 1 (for wired remote control) |
| REMOTE 1 OUT: |
M3 x 1 for link control (for wired remote control) |
| REMOTE 2 IN: |
D-sub 9-pin (female) x 1 for external control
(parallel) |
| LAN: |
RJ-45 x 1 (for network connection,
10Base-T/100Base-TX, compliant with PJLink™) |
| Keystone correction range:
|
Vertical: ±40° |
| Installation: |
Ceiling/floor, front/rear |
| Power Supply: |
120 V AC, 7.5 A, 50/60 Hz |
| Power Consumption: |
790 W (830 VA) at 120 V AC
(0.2 W at 120 V AC when
standby mode set to eco, 8 W at 120 V AC when standby mode
set to normal. Both with fan stopped.) |
| Dimensions (WxHxD): |
19-19/32" x 6-7/8" x 18-11/32 |
| Weight
2: |
Approximately 35.9 lbs |
|
|
|
|
Rent for
Live Events, Media Environments, Stage Sets, Exhibits or
Themed Environments, Meetings, Corporate Theater,
Promotions, Parties, Awards & Entertainment Events, Public
Relations & Industry Press Events, Road Shows, Traveling or
Permanent Shows, Museums, Film & Television, Sponsorship
Presentation, Special Environments for all occasions.
We are a full service audio, visual, video, lighting,
staging, and computer rental company. Serving clients
nationally, we offer one of the most comprehensive
inventories in the industry for small businesses events,
conventions, tradeshows, expositions, event planners,
training seminars, and live entertainment shows. With the
latest in technology from leading manufacturers, we ensure
your event will be a total success.
Rent
Tradeshow
AV
Equipment |
|
These are some of the following
specifications that may make your decision in what projector is
right for you
1. Brightness (Ansi Lumens):
Projectors come in a wide range of light output. All other
things being equal, the brighter the projector, the more it
costs. When it comes to "optimum brightness" the rule is simple:
Get the brightest projector you can afford.
Brightness is measured in ANSI (American National Standards
Institute) lumens: the brighter the projector, the higher the
ANSI lumen rating.
In today’s market, projectors can be grouped by ANSI lumen
output as follows:
Less than 1000 lumens – these are the lowest light-output
projectors available today, and they are typically the least
expensive. If you are on a tight budget, there are a number of
products in this category that may be perfect for your needs.
Keep in mind that the low light output means that you will want
to make your presentations in a dark or dimly lit room so that
the image on the screen is not washed out by ambient room light.
None Available as they do not support many of the features need
in today's computers
1000 to 2000 lumens – this lumen range is a step up in
performance and price. There are many SVGA and XGA products in
this class to choose from. These machines are suitable for
normal business conference room, classroom use and for home
theater use. Presentations should be done with the room lighting
reduced somewhat for best screen viewing, although dimly lit
room is usually best.
2000 to 3000 lumens – this represents the high-performance range
of the portable and semi-portable projectors. Products in this
class are suitable for large conference rooms, Large classrooms
and Really lit Home theater. They offer more flexibility in
terms of ambient room light, since the image is bright enough
that a reasonable amount of room light can be tolerated without
washing out the image. They also offer more flexibility in terms
of audience size since they can illuminate a larger screen
without much loss of image quality.
3000 lumens and up – the ultra-bright projectors are in several
performance classes unto themselves, ranging from 3000 up to
12000 lumens or more. Prices of these products also cover a wide
range depending on other performance characteristics. They are
used in a variety of large venue applications, including board
rooms, conference rooms, training rooms, auditoriums, churches,
concerts, nightclubs, and so forth. |
|
